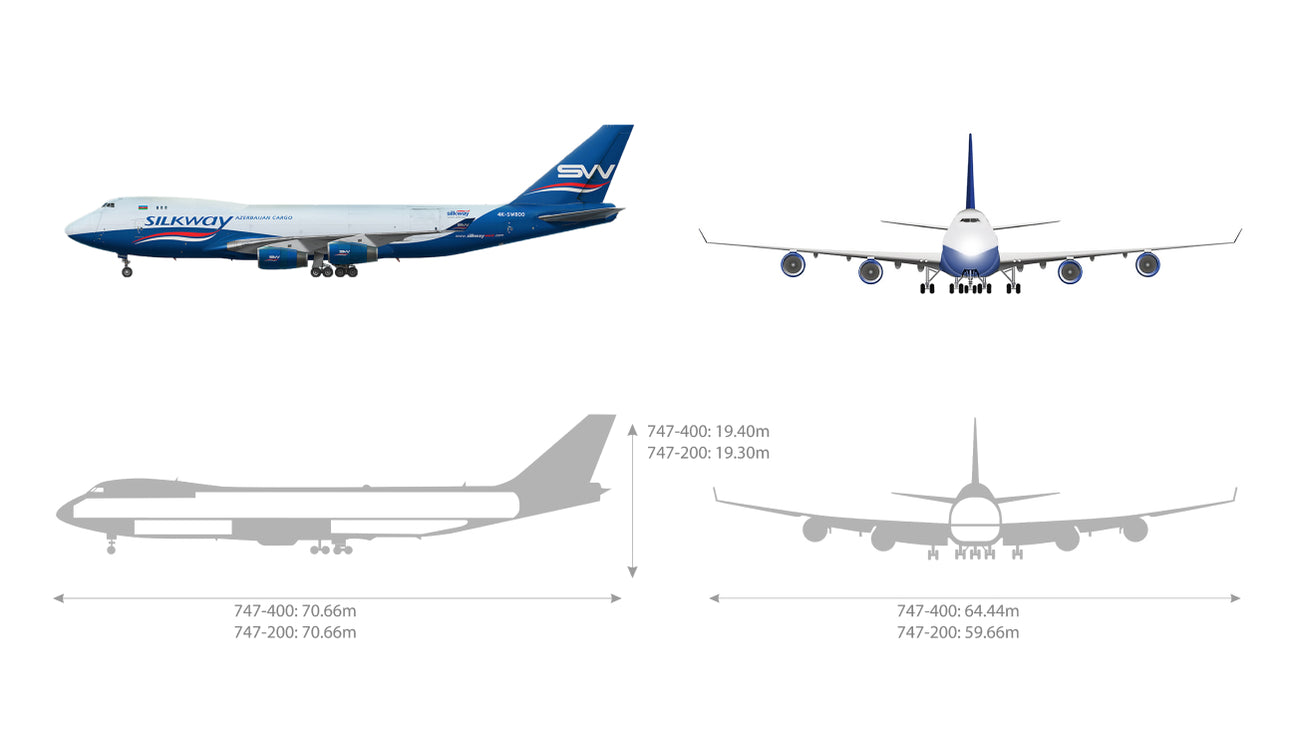

Boeing 747-400F

One of the world’s most popular choices for commercial cargo airplanes, the Boeing 747 boasts a wide fuselage and features a nose door for flexible loading.

Known as 'the jumbo jet', the Boeing 747-400F commercial cargo plane was specifically designed with long-distance capabilities in mind. It has a wide fuselage and features a nose door for oversized cargo and more flexible loading.

Aircraft Specifications

  • Cruise speed 898 km/h / 560mph
  • Door size (WxH) 340×312 CM / 133″x122
  • Range Long haul
  • Total load volume 735 m³ / 25956’³
  • Payload 120000 kg / 264554 lbs
  • Maximum range 7169 km / 4454 miles
  • Hold size (LxWxH) 4860cm x 497cm x 305cm
  • Runway requirement 3170 m / 10400’3

Pallets and container

PMC
  • Dimensions 243.8*317.5cm (96*125inch)
  • Standard Tare Weight 115 kg/15 000 lbs
  • MGW 6804 kg/15 000 lbs
PGA
  • Dimensions 243,8*604,5cm (96*238inch)
  • Standard Tare Weight 575 kg
  • MGW 13 608 kg/30 000 lbs
PRA
  • Dimensions 243,8*497,8cm (96*196inch)
  • Standard Tare Weight 485 kg
  • MGW 11 340 kg/25 000 lbs
PAG
  • Dimensions 223,5*317,5 (88*125inch)
  • Standard Tare Weight 105 kg
  • MGW 6804kg/15 000lbs
PYB
  • Dimensions 139,7*243,8 (55*96inch)
  • Standard Tare Weight 65 kg
  • MGW 2499 kg/5400 lbs
AKE
  • IATA Designator AKE
  • Design Specification NAS 3610-2K2C
  • Part Number 8136 0000
  • Tare Weight from 172 lbs / 78 kg
  • Base Size 60.4” x 61.5” / 1,534 mm x 1,562 mm
  • Height 64” / 1,626 mm
  • Roof Length 79” / 2,006 mm
  • Max. Gross Weight 3,500 lbs / 1,588 kg
  • AC Applications A300 / A330 / A340 / A380 / B747 / B777 / DC-10 / MD-11

CERTIFICATIONS

The PalNet LD-3 container is certified under NAS 3610 Rev. 10 / ETSO C90c / TSO C90c and is EASA approved under EASA.21O.546. PalNet GmbH Air Cargo Products is an Approved Manufacturing Organisation, LBA DE.21G.0151, and holder of Alternate Procedures to Design Organisation Approval (AP to DOA) No. AP152.

DESCRIPTION

The PalNet LD-3 container is a non-welded unit with exchangeable panels which allows quick and easy assembly as parts are prefabricated. It also ensures a quick and easy exchange of parts and/or subassemblies. Connected by only a few number of huck-bolts the maintenance is no challenge.
