BOEING 747-8F
One of the world’s most popular choices for commercial cargo airplanes, the Boeing 747 boasts a wide fuselage and features a large side door and nose door for flexible loading.
Aircraft Specifications
- Cruise speed 898 km/h / 560mph
- Range Long haul
- Payload 135000 kg / 297624 lbs
- Hold size (LxWxH) 5500cm x 497cm x 305cm

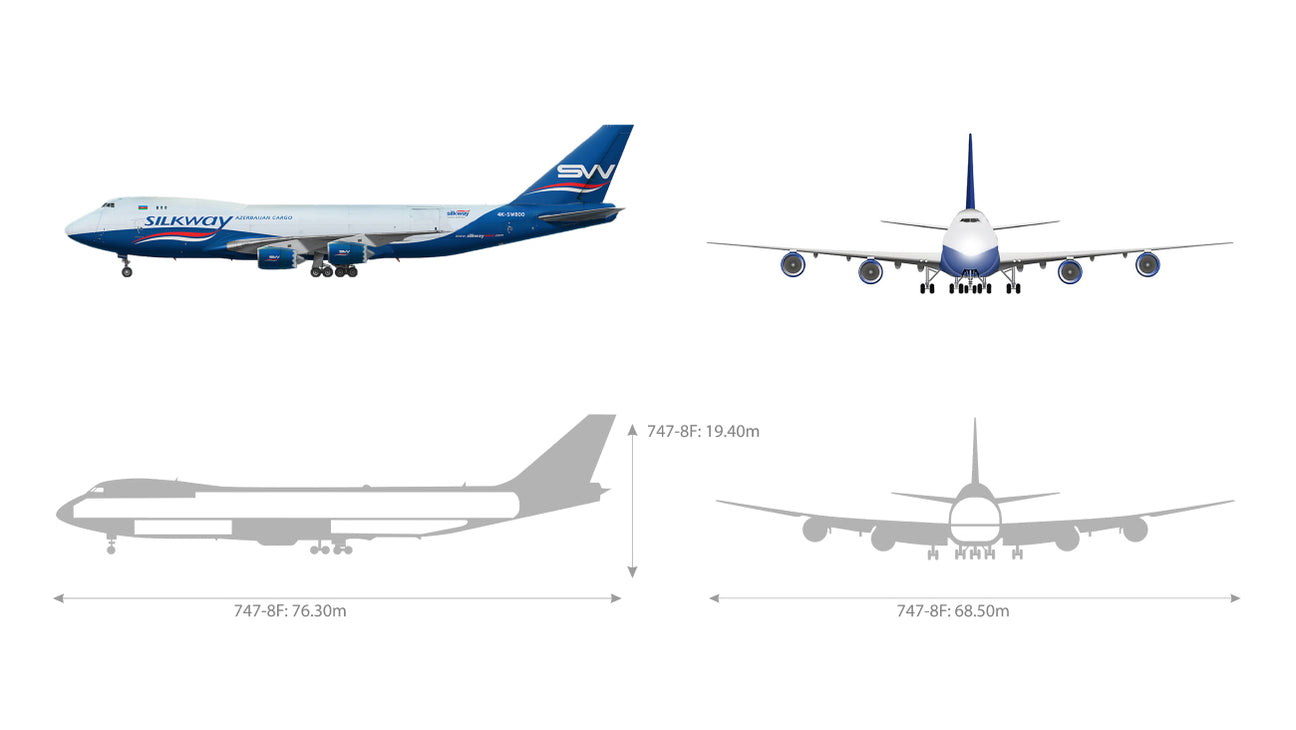

- Dimensions / Wing span 68,40 m / 224 ft

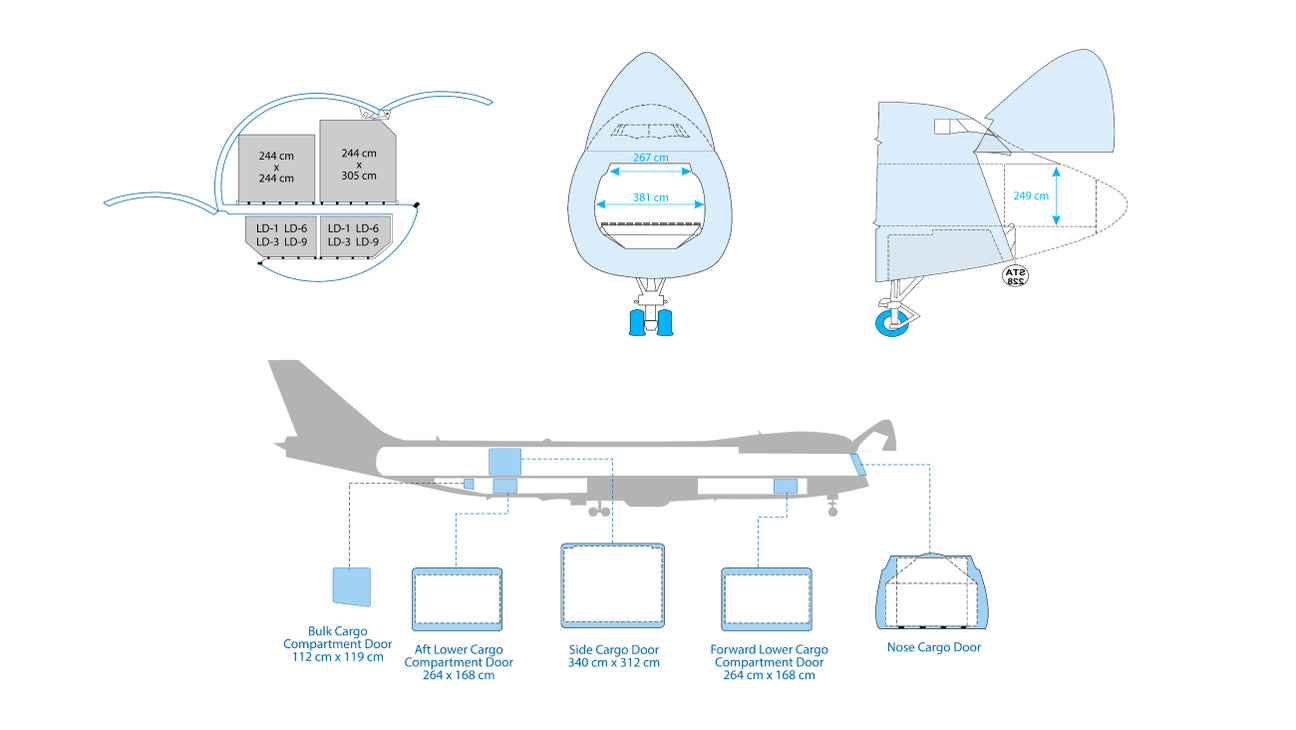

- Door size 340 x 312 CM (133” x 122”)
- Total load volume 792m3
- Maximum range 6630 KM / 4,120 Miles
- Maximum range 6630 KM / 4,120 Miles
Pallets and container

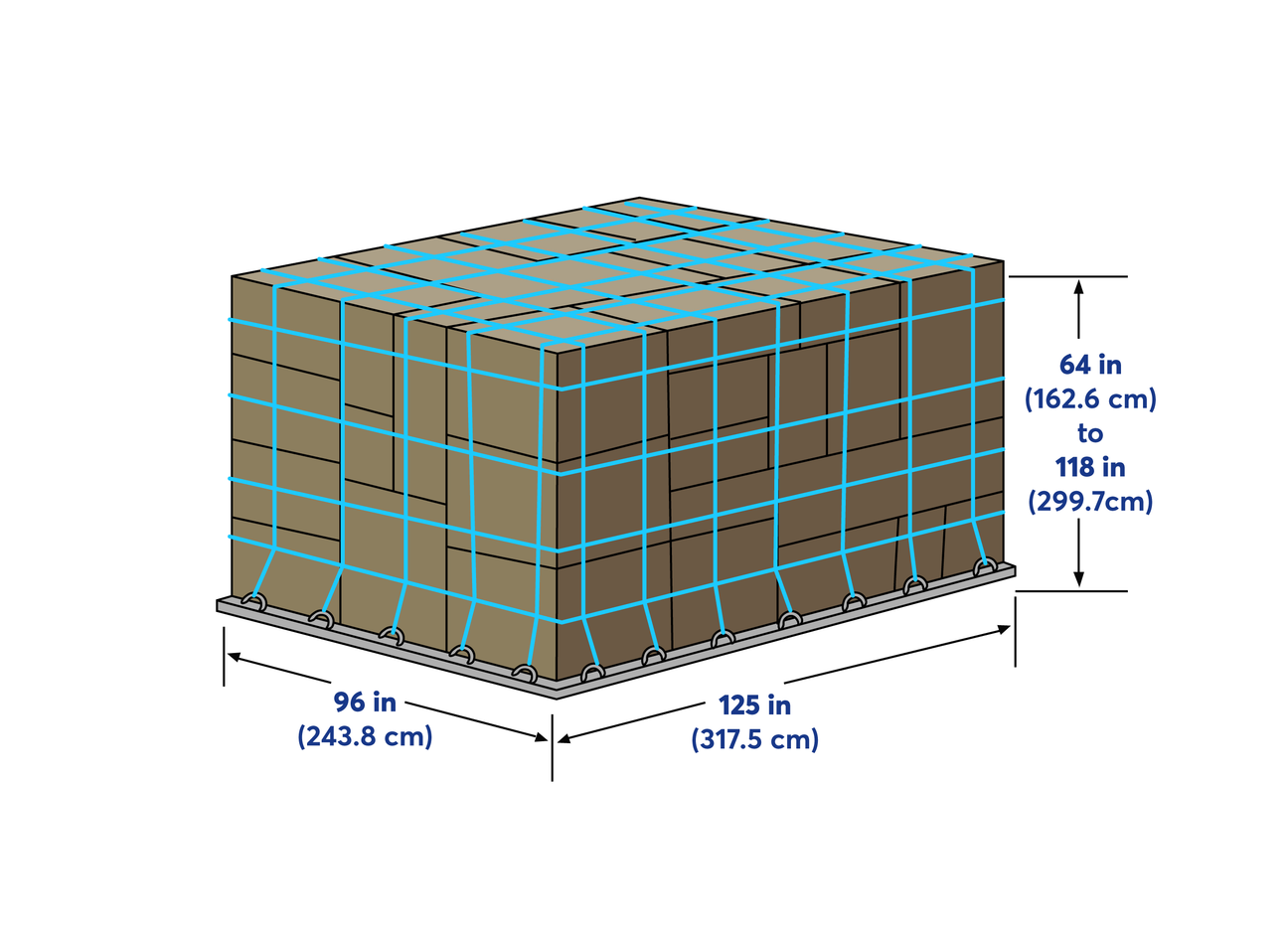

- Dimensions 243.8*317.5cm (96*125inch)
- Standard Tare Weight 115 kg/15 000 lbs
- MGW 6804 kg/15 000 lbs

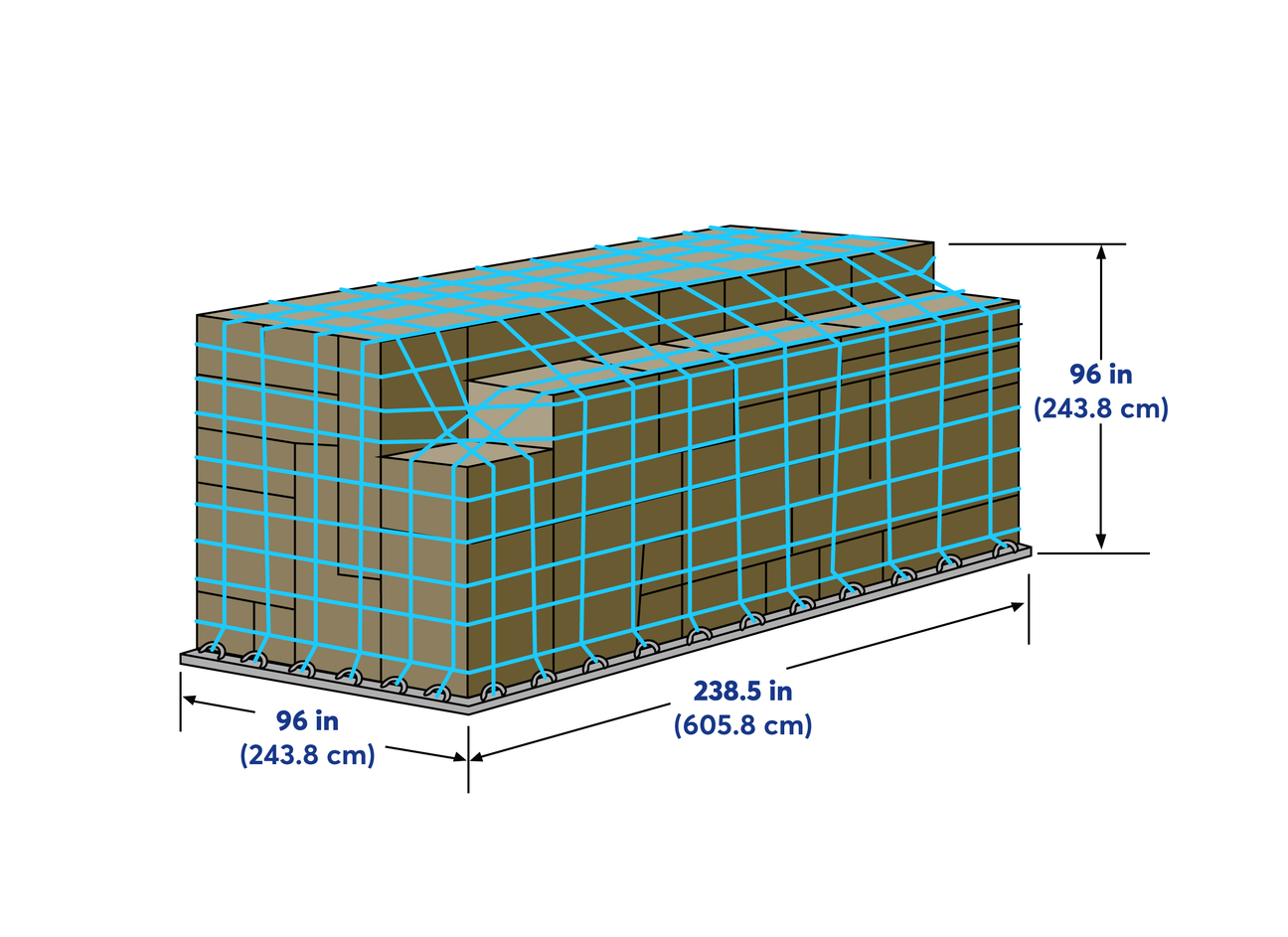

- Dimensions 243,8*604,5cm (96*238inch)
- Standard Tare Weight 575 kg
- MGW 13 608 kg/30 000 lbs

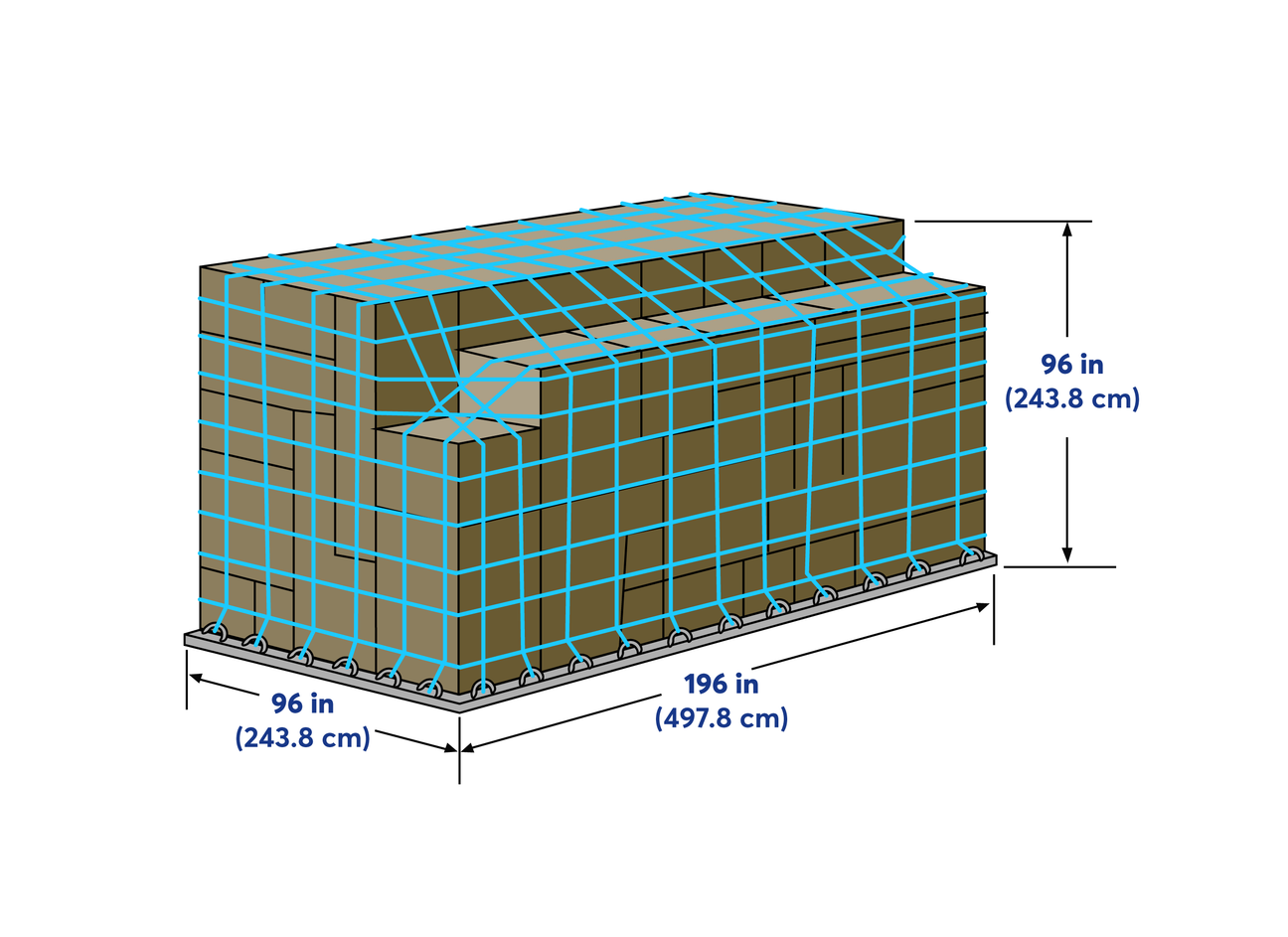

- Dimensions 243,8*497,8cm (96*196inch)
- Standard Tare Weight 485 kg
- MGW 11 340 kg/25 000 lbs

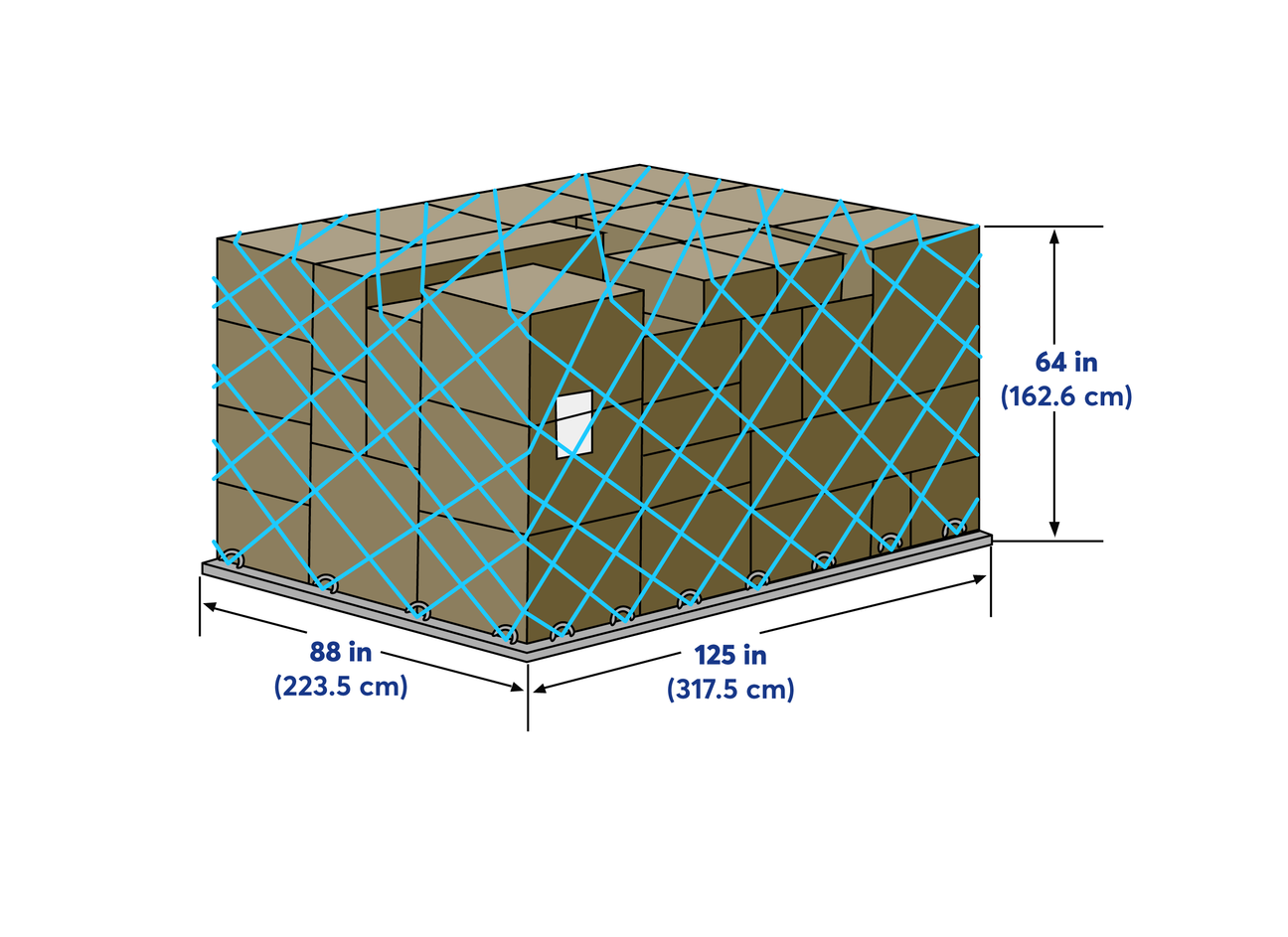

- Dimensions 223,5*317,5 (88*125inch)
- Standard Tare Weight 105 kg
- MGW 6804kg/15 000lbs
- Dimensions 139,7*243,8 (55*96inch)
- Standard Tare Weight 65 kg
- MGW 2499 kg/5400 lbs

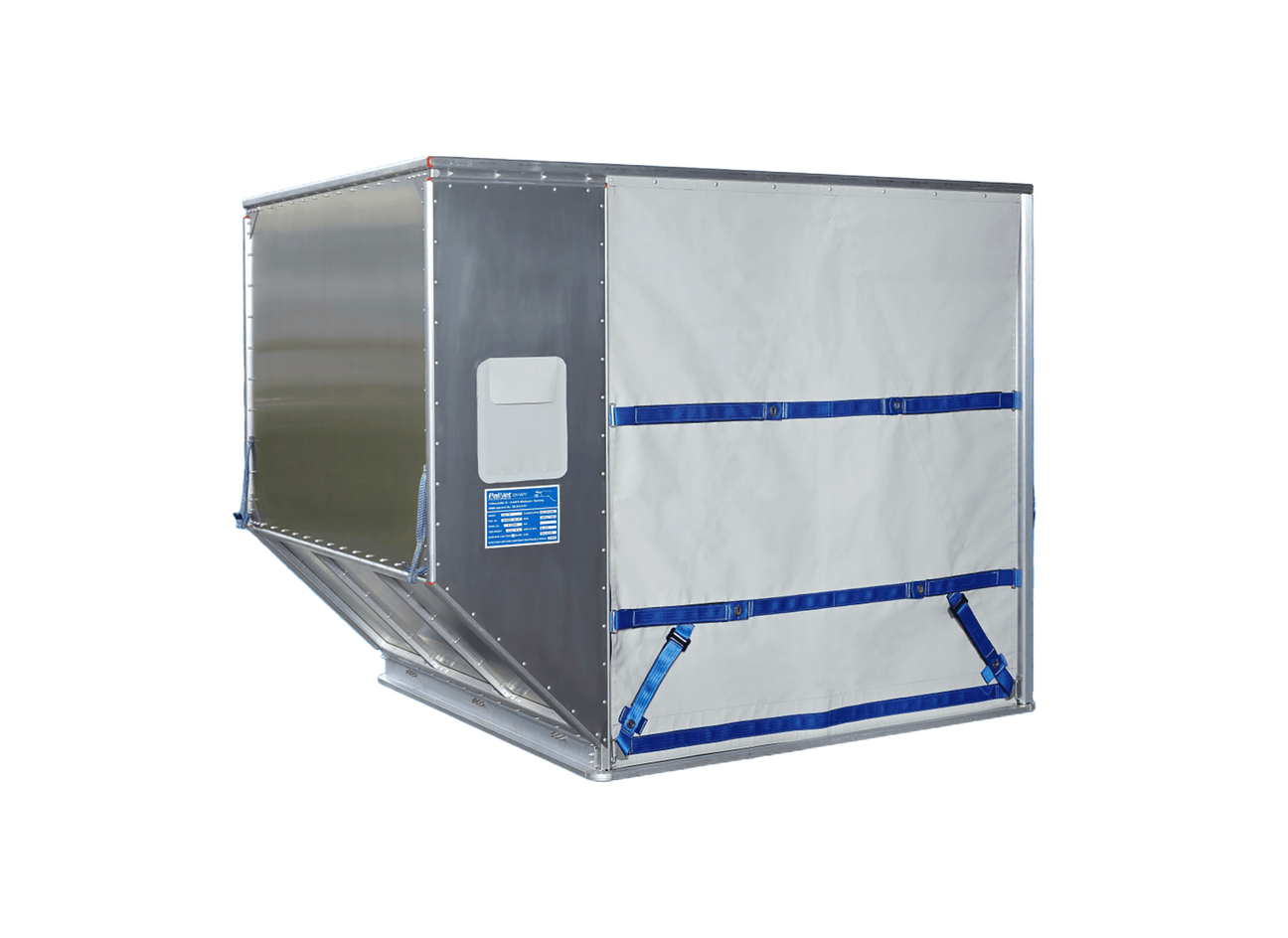

- IATA Designator AKE
- Design Specification NAS 3610-2K2C
- Part Number 8136 0000
- Tare Weight from 172 lbs / 78 kg
- Base Size 60.4” x 61.5” / 1,534 mm x 1,562 mm
- Height 64” / 1,626 mm
- Roof Length 79” / 2,006 mm
- Max. Gross Weight 3,500 lbs / 1,588 kg
- AC Applications A300 / A330 / A340 / A380 / B747 / B777 / DC-10 / MD-11
CERTIFICATIONS
The PalNet LD-3 container is certified under NAS 3610 Rev. 10 / ETSO C90c / TSO C90c and is EASA approved under EASA.21O.546. PalNet GmbH Air Cargo Products is an Approved Manufacturing Organisation, LBA DE.21G.0151, and holder of Alternate Procedures to Design Organisation Approval (AP to DOA) No. AP152.
DESCRIPTION
The PalNet LD-3 container is a non-welded unit with exchangeable panels which allows quick and easy assembly as parts are prefabricated. It also ensures a quick and easy exchange of parts and/or subassemblies. Connected by only a few number of huck-bolts the maintenance is no challenge.
